The Ultra Flexible Zstor GS4260N10 60+10bay Storage Server with NVMe Cache Drive Option
The Zstor Rack Server GS4260N10 is a universal enterprise 4U rack server with a large storage capacity of up to 60x 3.5" hard drives, 8x 2.5" NVMe U.2 / SAS / SATA SSDs, and 2x SAS/STA SSDs. It supports the 4th/5th Gen Intel® Xeon® Scalable processors. With its extremely large storage capacity, ultra-fast I/O interfaces and extremely high computing power, it is a memory-intensive server product that combines computing power and storage space for data storage applications.
Flexible Design, Huge Capacity
The Zstor GS4260N10 offers wide flexibility for software-defined storage solutions based on ZFS storage systems like ZFS on Linux, TrueNAS, or Open-E JovianDSS; as well as solutions like CEPH. The support for 60x 3.5" SAS/SATA drives in a 4U rackmount server enables high density storage solutions for large datasets.
High Performance, High Density
The server supports 2× 4th/5th Gen Intel® Xeon® Scalable processors with a TDP of up to 350W each.
32x DDR5 DIMM slots and PCIe 5.0 technologies with up to 7 PCIe slots accelerate data throughput and offer flexible expansion options.
8x 2.5" SAS/SATA/NVMe + 2x 2.5" SAS/SATA, all hot-swap, plus 4x M.2 SSDs allow for flexible configurations for high-performance storage tiers, caching, and boot drives.
Convenient Management, Easy Maintenance

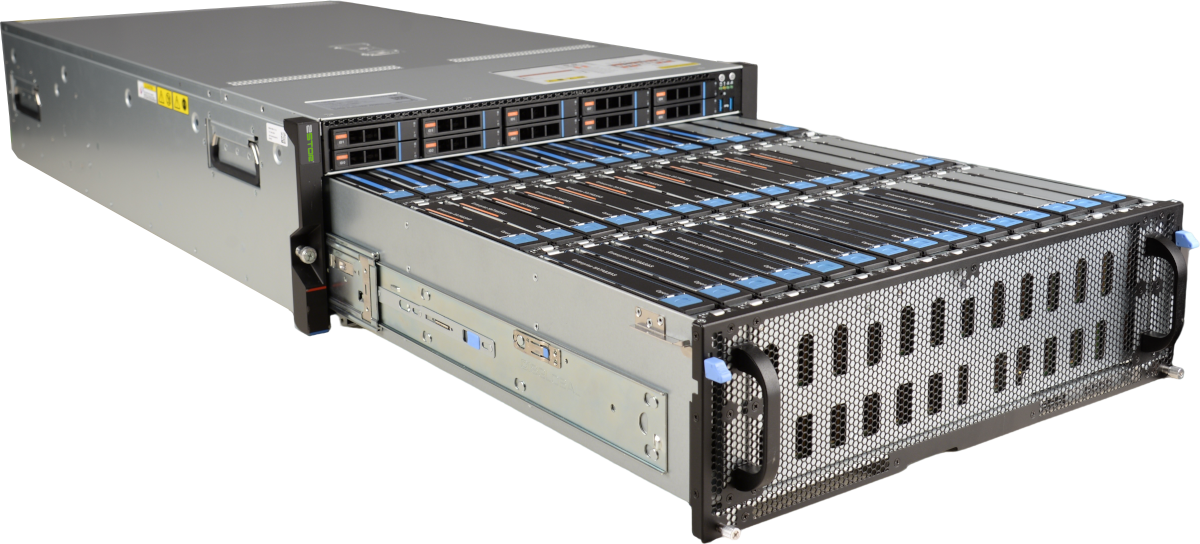

The innovative design of the disk drawer allows for easy and quick maintenance and upgrades.
Comprehensively monitored system health so that core components can be monitored and diagnosed.
Provides enterprise-level management functions and reliability, automatic equipment on-duty observation, real-time monitoring of core components, and makes streamline classification and reporting of faults, providing comprehensive guarantee for data center O&M.
Green, Energy Saving, Environment Protection
Adopts 80PLUS high-efficiency power modules to support high-voltage DC and low-voltage DC technologies to improve energy utilization.
Supports Titanium power supplies.
Selects high-efficiency fans so that under the same heat dissipation capability, the power consumption is lower.
Supports intelligent speed adjustment and silence design of fans.
Lead-free design and environmental protection
Zstor Ultra Flexible 4U Storage Server with NVMe SSD Cache drives option
|
|
 |
  |
| Product | GS4260N10 |
| Processor | 2x 4th/5th Gen Intel® Xeon® Scalable processors, max TDP 350W |
| Memory | 32x DDR5 RDIMM and LRDIMM memory slots, at the maximum rate: 5.600MT/s |
| Hard disk controller | Supports standard HBAs and Raid cards, and SAS3.0/SAS4.0/SATA3.0/PCIe5.0 |

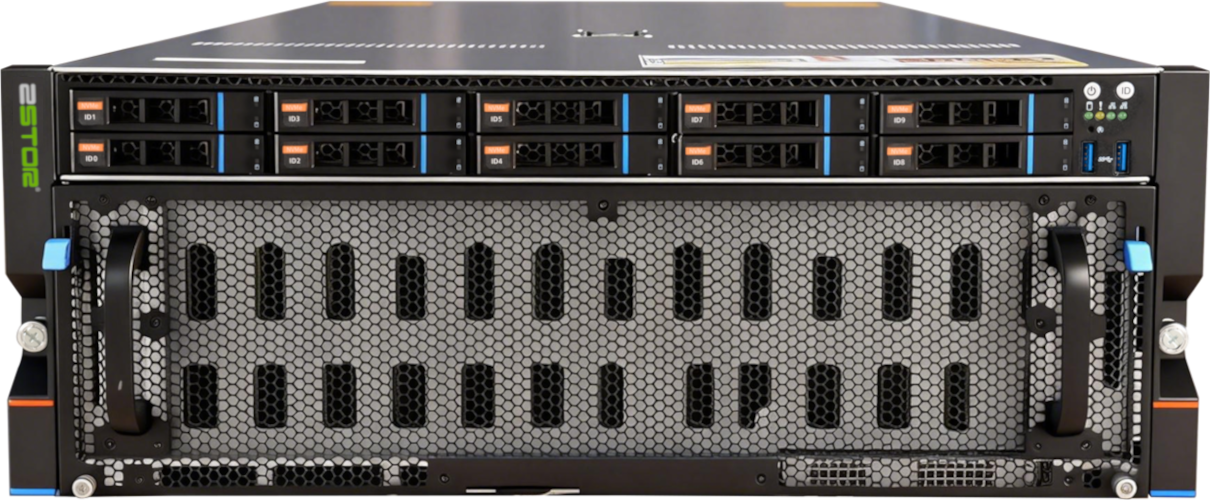

| Standard Drive Bays | Drawer: 60x 3.5" slots SAS/SATA Front: 8x 2.5" NVMe/SAS/SATA + 2x SAS/SATA Up to 4x M.2 |
| System Management | Web management interface, supporting IPMI2.0, SNMP V2/V3, RedFish, and KVM Over IP. |

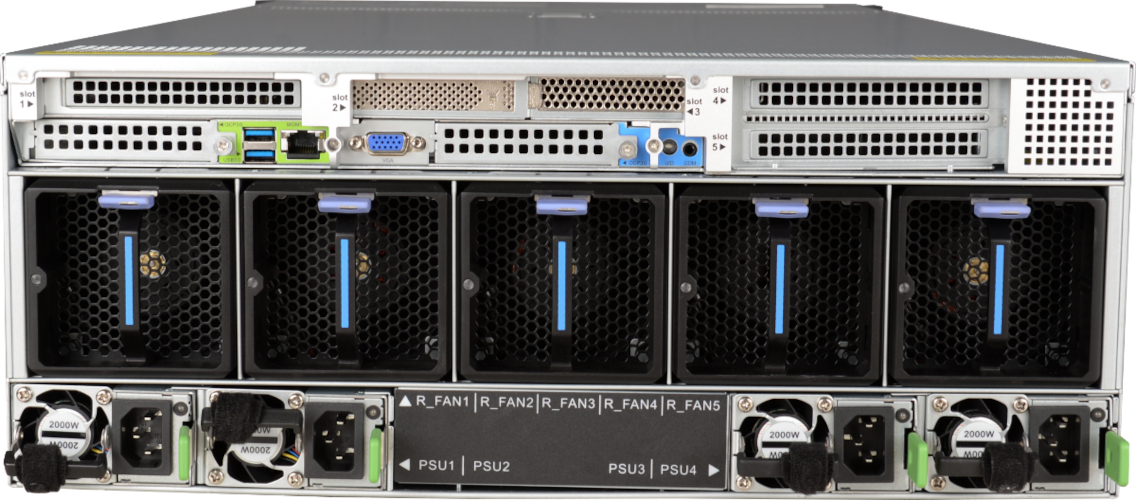

| External I/O | Front: 2x USB 2.0 Rear: 2x USB 3.0, 1x VGA, 1x serial port, 1x RJ45 management port Internal: 1x USB 2.0 |
| PCIe Slots | Up to 7 PCIe slots (including 2x OCP3.0 slots) |
| Power Supply | Supports 4 power modules, optional 1300W / 1600W / 2000W CRPS power supplies, Hot-Swap, N+1 redundancy |
| Cooling Fan | 7x 4056 Hot-Swap N+1 redundant Fan |
| Dimensions | 19-inch rack type, 4U, chassis size: 448 mm (width) x 175mm (height) x 899 mm (length) |
| Compliance Standard | CCC, CQC, CE, RoHS... |
| Warranty | 3 Years Warranty |
| Environment condition | Operation temperature： 5℃～35℃ |
| Compatible OS | Windows Server, RHEL, SLES, CentOS, Ubuntu, Debian, VMware ESXi, etc. |
Please contact the Zstor Sales Team for more information per E-Mail:
